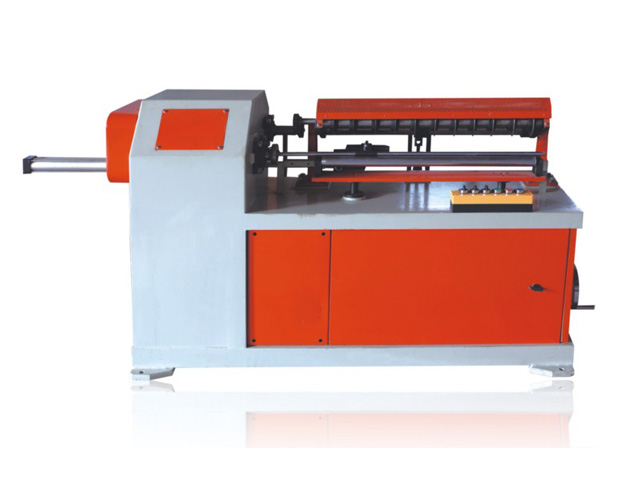

suitable for all kinds of small size paper core recutting. such as paper core pencil,paper core used for cash and fax etc.

Parameter:

a. Universal Parameter:

l Painting:                   Orange and white

l Electricity:                 380V/220V 50HZ(according to your requirement)

b. Technical Parameter:

l Inside Diameter:             6-35mm

l Parent tube length:        750m(300mm for the tube ID below 10mm,otherwise mandrel will be bent

l Recut length:                  min30mm

l Wall thickness:               1-5mm

l Working Air Pressure:   0.6Mpa

l Operator:                        1

l Speed:                            8-16parent tubes /min (depends on operator’s practical skill)

l Main motor:                   1.5KW

c. Main function:

l Cut by Multi-knives almost in the same time.

l Manually uploading the paper tube and automatic unloading.

l Manually adjust the distance of knives.

l Use alloy steel circular knives.

d. Basic Supplied Scope:

l Mandrel:                 1 PC (depends on customer requirement)

l Cut knives:              11 Set

l Motor:                       1.5KW

e. Main Parts Material:

l Machine frame made by cold-galvanizing plate.

l Machine frame welded by heavy-type channel steel and iron plate.
