| Inside Diameter: | 30-152mm(standard) |
| Parent Length: | 1600m(standard) |
| Wall Thickness: | 3-15mm |
| Speed: | 1 cycle/sec |
| Knfec Carriager Moving Speed: | 300mm/sec, 500mm/sec |
| Cutting Tolerance: | (+ -)0.3mm |
| Tube Rotating Motor: | 2.2Kw |
| Working Air Pressure: | 0.6Mpa |
| Knife Set: | 1 set |
| Servo Motor: | 1 KW |
| Opertors: | 1 person |
| Overall Size: | 2750 x 950 x 1060mm |
| Other Machine Size(for Mandrel or Parent Paper Core/Tube) | 1600mm,2000mm,2500mm,3200mm
|
Specifications

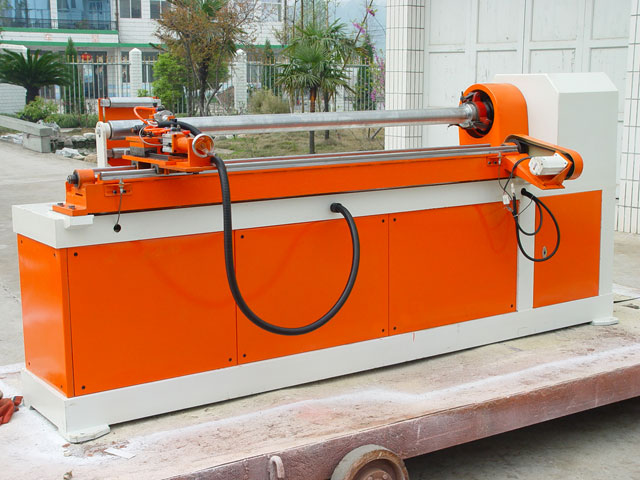

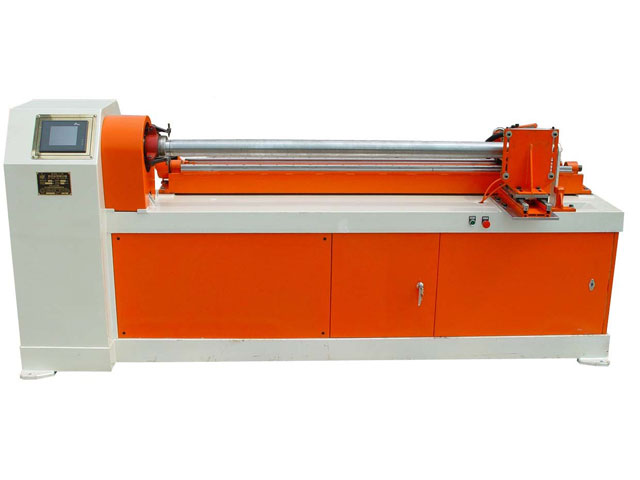

SJQ-D digital paper core recutting machine:
1. I.D.: 30-152mm
2. Thickness: 3-15mm
3. Cutting Length: 10-1600mm
Feature:
Digital control steel circular knife paper core recutter,High precision,convenient to set cutting length.
A. Machine main functions:
l Adopt micro-computer to set recut length,high precision;Adjust data conveniently on touch screen;
l Adopt human-machine interface and specialized operation system,easier to operate;
l High mechanism processing accuracy,the tolerance of recut tube length can be controlled within +/- 0.3mm;
l Tube is cut by tungsten steel circular knife;
l Manually tube loading and unloading;
l No need to adjust knives distance,only need to put in required data on touch-screen,saving time and avoiding tube waste caused by inaccurate manual knives-adjustment;
l Knife rotates a certain angle after every cut,reducing knife damage, prolonging knife’s using life;
l When knife is partly broken, still can cut, just turn an angle then fasten it;Prolong knife using life;

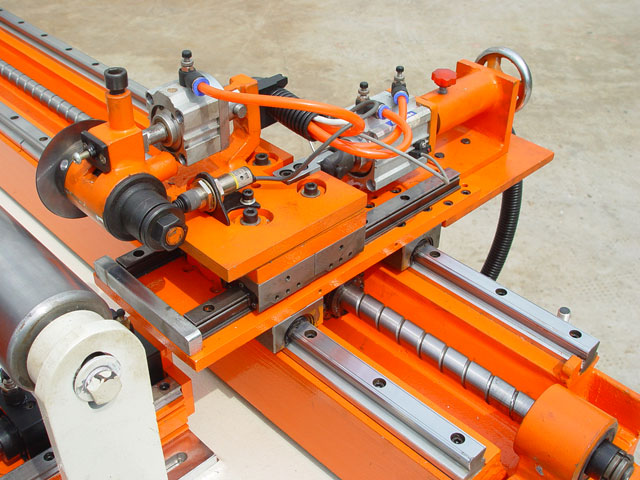

l Knife adjusting part is equipped with a precise dial gauge,ensuring knife touches mandrel in a exactly position; Reduce damage to mandrel cause by knife touch;
l Tube rotates while knife does not rotate.Smooth cut surface comes out by the friction between knife and rotating tube;
l Tube rotates while mandrel does not rotate.Reduce damage to knife and mandrel,prolonging using life;If mandrel also rotates in cutting,it will form a cutting circle line on mandrel;While mandrel doesn’t rotate,only a cutting point on mandrel;
B. Main parts material and instruction:
l Machine installed cover and door are made of cold plating sheet;
l Machinery frame is welded by heavy channel steel and iron sheet.
l Tungsten steel circular knife.
